Vacuum · Cryogenic · High-temperature · Radiation

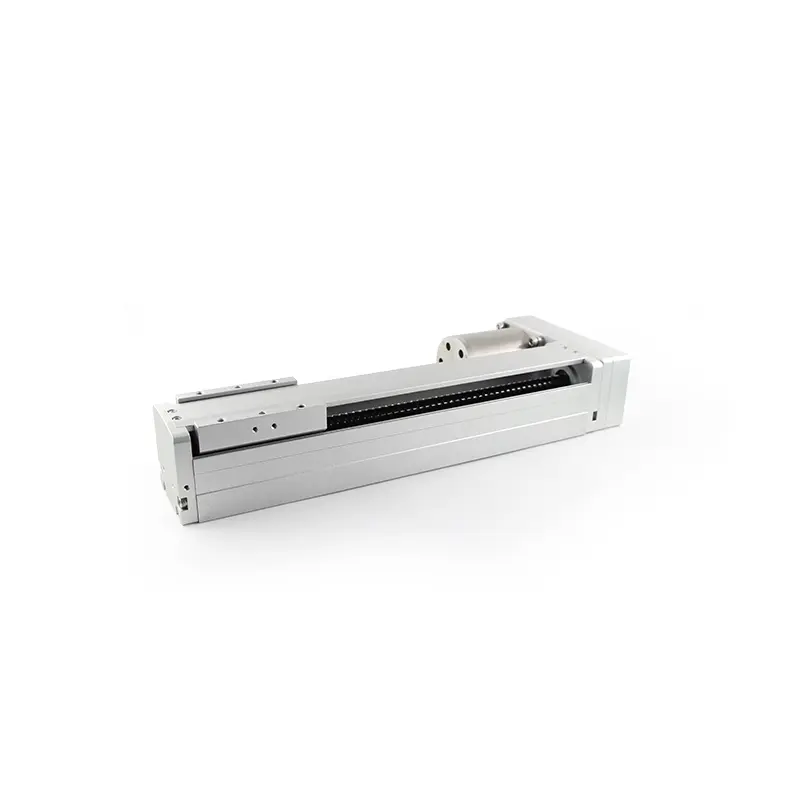

Linear motion stage for extreme environments of cryogenic -196℃, high temperature +200℃,vacuum 10-7Pa,  radiation 106Gy  stroke

The KLS series linear motion stage are the ideal choice for ultra-high vacuum(UHV), cryogenic, high temperature, radiation, and other extreme environments. Their integrated structure design, compact size, high rigidity, high repeatability, fast speed, and high load capacity make them the best on the market. They are widely used in biomedical, semiconductor manufacturing, environmental simulation test equipment, in-vacuum processing equipment, and many of  other general automation.

    Contact us
    Overview
    Ordering Information
    Specifications

    Key Features

    ● Stepper motors for operations in vacuum, cryogenic, high temperature and radiation applications

    ● Vacuum: up to 10-7Pa

    ● Operating temperature: down to -196℃ , up to 200℃

    ● Radiation resistance: up to 106Gy

    ● Base width：30/40/60/80/135/170mm

    ● Maximum load capacity：150Kg horizontal ， 100Kg vertical

    ● Repeatability: ±0.01mm

    Applications

    ● Biomedical
    ● Semiconductor manufacturing
    ● 3C manufacturing
    ● Scientific Instruments
    ● in-vacuum equipment
    ● Nuclear energy
    ● Military and Aerospace
    ● automative parts testing
    ● General Automation

    KLS

    ① Product series

    KLS series linear motion stage


    ② Base width(mm)

    30 = 30mm

    40 = 40mm

    60 = 60mm

    80 = 80mm

    140 = 135mm

    170 = 170mm


    ③ Stroke length(mm)

    50、100、150、200、250、300、350、400、450、500、550、600、650、700、750、800、850、900、950、1000、1050、1100、1150、1200、1250、1300、1350、1400、1450、1500

    Please refer to the specification tables for the available stroke length.


    ④ Screw lead(mm)

    2、4、5、10、16、20mm

    Please refer to the specification tables for the available screw lead.

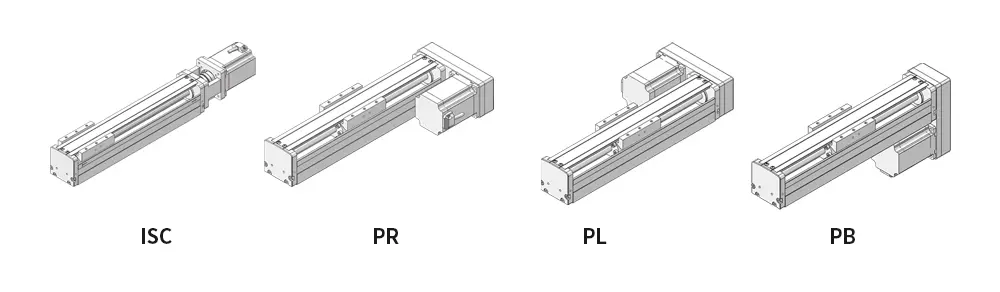

    ⑤ Motor mounting

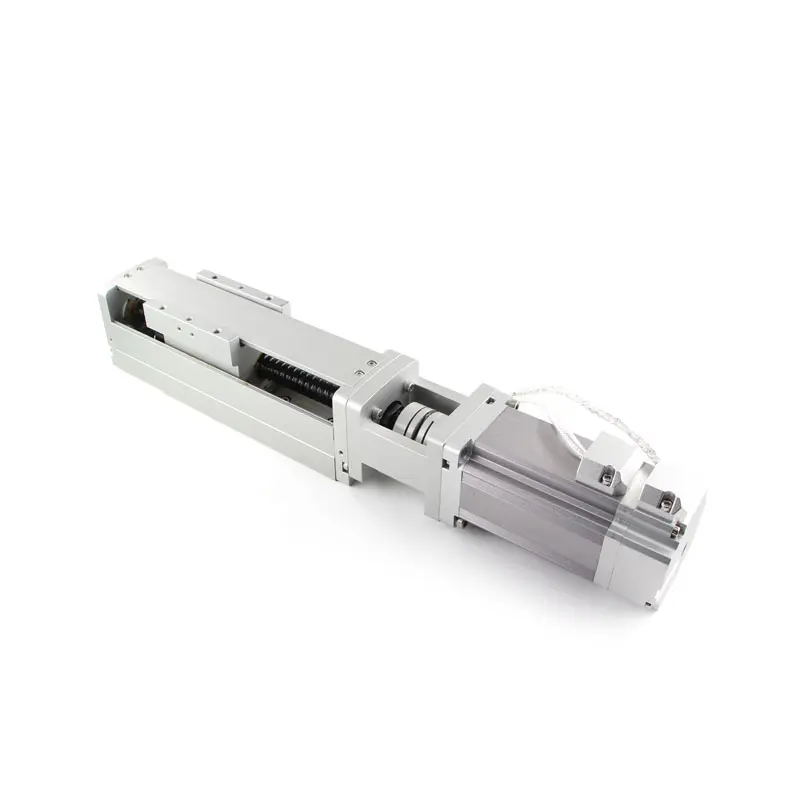

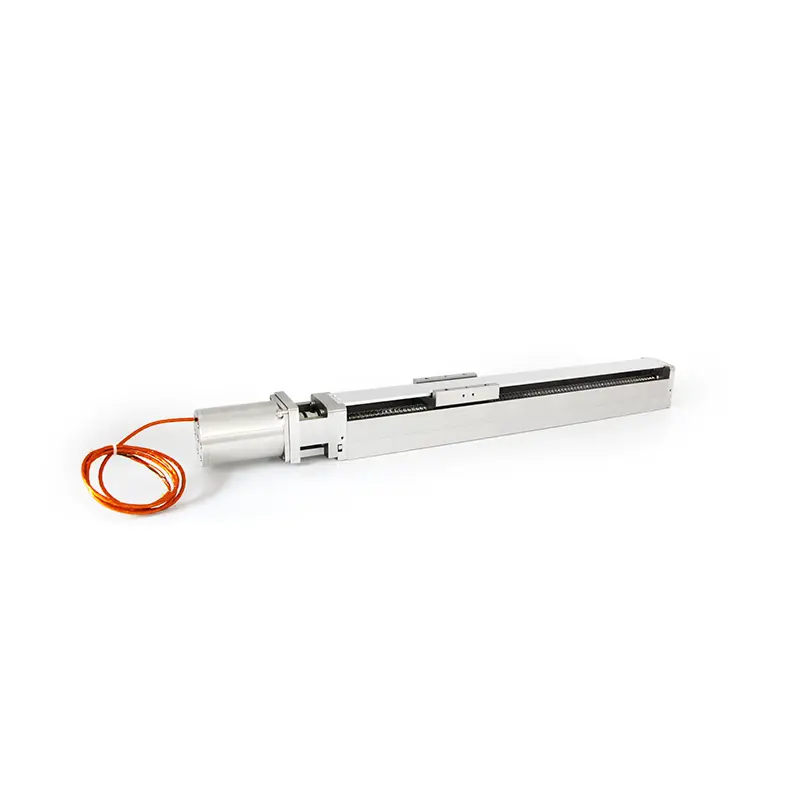

    ISC: in-line (with coupling)

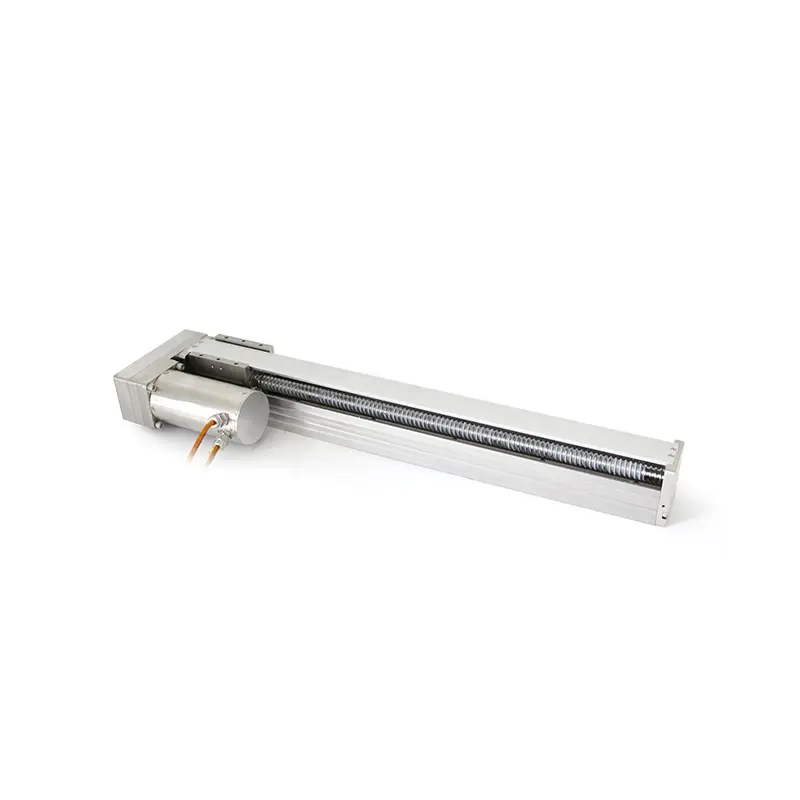

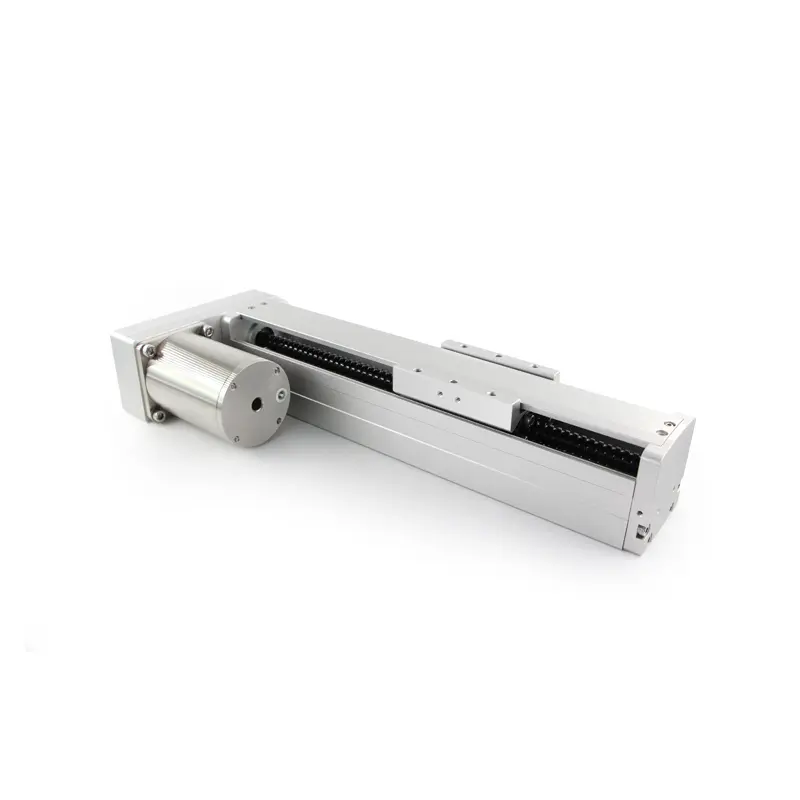

    PR: parallel on right side (with high precision gear, ratio 1:1 )

    PL: parallel on left side (with high precision gear, ratio 1:1 )

    PB: parallel below the linear motion stage (with high precision gear, ratio 1:1 )

    12

    ⑥ Environmental temperature ratings
    Environmental temperature rating  code Temperature range
    (℃)    		 Vacuum class
    (Pa，optional)    		 Radiation resistance
    (Gy，optional)
    RHT -20～+200 10-3 106
    SHT -20～+200 10-3/10-5/10-7 -
    HT -20～+150 10-3/10-5/10-7 -
    NTL1 -40～+85 10-3/10-5 -
    NTL2 -40～+100 - -
    NTL3 -65～+125 10-3 -
    NTL4 -80～+40 10-3 -
    NTL5 -55～+150 - -

    ⑦ Vacuum class

    Blank = Non-vacuum

    V3 = Low pressure or vacuum to 10-3Pa

    V5 = Vacuum to 10-5Pa

    V7 = Vacuum to 10-7Pa


    ⑧ Radiation resistance

    Blank = No radiation resistance

    RH = Radiation resistance (total dose 106Gy)


    ⑨ Designator of mounted motor

    e.g.

    KH42 = KH series 42mm stepper motor

    KVM57 = KVM series 57mm stepper motor

    KECM400 = KECM series 400W servo motor

    KSSM750 = KSSM series750W servo motor

    PB60L2 = PB60 2-stege reducer  (please specify the reducer stage, e.g. L1 or L2)

    KLS30
    KLS40
    KLS60
    KLS80
    KLS140
    KLS170

    Technical Specifications

    KLS30
    Width of base construction(mm) 30
    Stroke length(mm), intermediate length available on request 50、100、150、200
    Screw diameter(mm) 6
    Screw lead（mm） 2
    Screw accuracy grade C5
    Motor mounting    Parallel mounting (with gear)， PL/PR /PB available
    Repeatability(mm) ±0.02
    Rated horizonal load capacity(Kg) 3
    Rated vertical load capacity(Kg) 1
    Rated thrust force(N) 200
    Screw dynamic load capacity(N) 900
    Maximum side moment(N.m) MR=5.0     MP=2.8     MY=2.8
    Maximum speed(mm/s) 20
    Operating temperature(℃) minimum -196℃/maximum +200℃(refer to environment ratings table for details)
    Maximum vacuum level(Pa) 10-7 (refer to environment ratings table for details)
    Radiation resistance(Gy) 106
    Adapted motor 28mm stepper motor

    Dimension Drawings

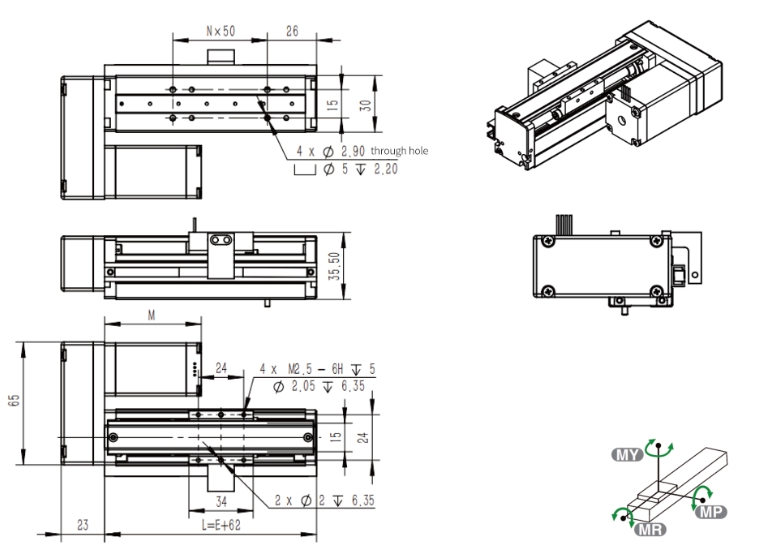

    KLS30-motor parrllel mounting

    kls30

    Specifications

    KLS40
    Model Stroke length
    (mm)    		 Screw lead
    (mm)    		 Rated horizonal load capacity
    (Kg)    		 Rated vertical load capacity
    (Kg)    		 Rated thrust force
    (N)    		 Maximum speed
    (mm/s)    		 Repeatability
    (mm)
    KLS40 50-300 4 8 4 500 40 ±0.01

    Specifications

    KLS60
    Model Stroke length
    (mm)    		 Screw lead
    (mm)    		 Rated horizonal load capacity
    (Kg)    		 Rated vertical load capacity
    (Kg)    		 Rated thrust force
    (N)    		 Maximum speed
    (mm/s)    		 Repeatability
    (mm)
    KLS60 50-600 5/10 40 10 1500 500 ±0.01

    Specifications

    KLS80
    Model Stroke length
    (mm)    		 Screw lead
    (mm)    		 Rated horizonal load capacity
    (Kg)    		 Rated vertical load capacity
    (Kg)    		 Rated thrust force
    (N)    		 Maximum speed
    (mm/s)    		 Repeatability
    (mm)
    KLS80 50-1000 5/10/16 60 40 2500 800 ±0.01

    Specifications

    KLS140
    Model Stroke length
    (mm)    		 Screw lead
    (mm)    		 Rated horizonal load capacity
    (Kg)    		 Rated vertical load capacity
    (Kg)    		 Rated thrust force
    (N)    		 Maximum speed
    (mm/s)    		 Repeatability
    (mm)
    KLS140 50-1300 5/10/20 120 80 4000 833 ±0.01

    Specifications

    KLS170
    Model Stroke length
    (mm)    		 Screw lead
    (mm)    		 Rated horizonal load capacity
    (Kg)    		 Rated vertical load capacity
    (Kg)    		 Rated thrust force
    (N)    		 Maximum speed
    (mm/s)    		 Repeatability
    (mm)
    KLS170 50-1500 5 150 100 3500 208 ±0.01

    Specifications

    KLS40
    Width of base construction(mm) 40
    Stroke length(mm), intermediate length available on request 50、100、150、200、250、300
    Screw diameter(mm) 8
    Screw lead(mm) 4
    Screw accuracy grade C5
    Motor mounting    in-line (with coupling)/Parallel mounting (with gear)
    Repeatability(mm) ±0.02
    Rated horizonal load capacity(Kg) 8
    Rated vertical load capacity(Kg) 4
    Rated thrust force(N) 500
    Screw dynamic load capacity(N) 1800
    Maximum side moment(N.m) MR=12     MP=6     MY=6
    Maximum speed(mm/s) 40
    Operating temperature(℃) minimum -196℃/maximum +200℃(refer to environment ratings table for details)
    Maximum vacuum level(Pa) 10-7(refer to environment ratings table for details)
    Radiation resistance(Gy) 106
    Adapted motor 42mm stepper motor

    Dimension Drawings

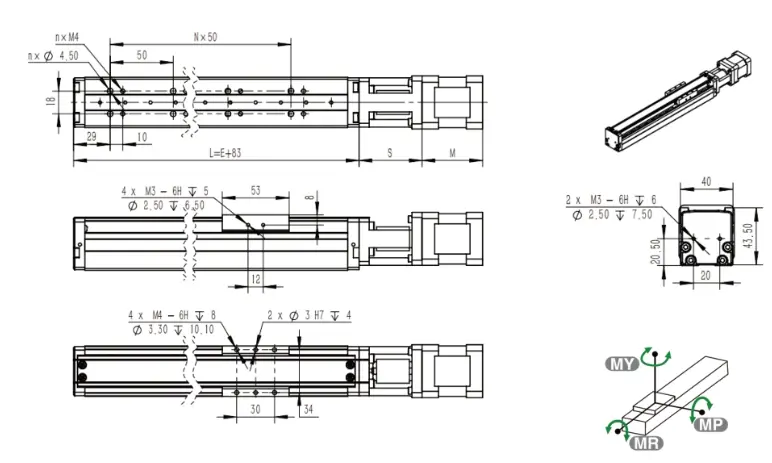

    KLS40-motor in-line mounting

    kls40

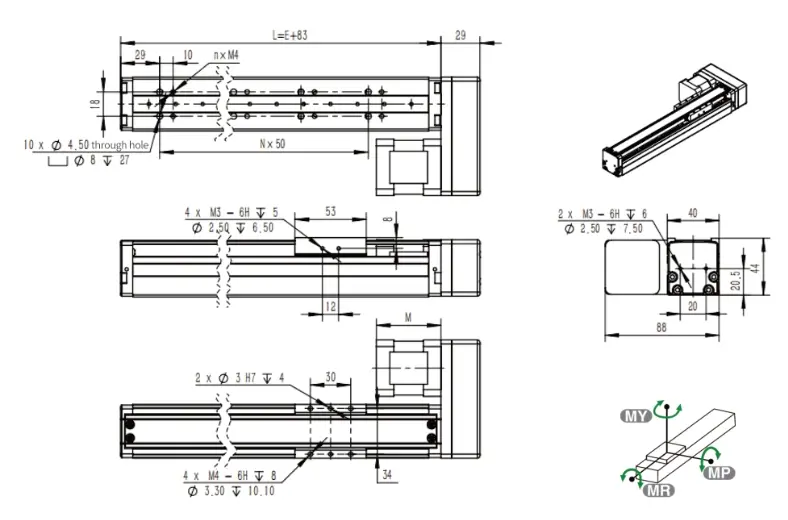

    KLS40-motor parrllel mounting
    kls40-

    Specifications

    KLS40
    Width of base construction(mm) 40
    Stroke length(mm), intermediate length available on request 50、100、150、200、250、300
    Screw diameter(mm) 8
    Screw lead(mm) 4
    Screw accuracy grade C5
    Motor mounting    in-line (with coupling)
    Repeatability(mm) ±0.02
    Rated horizonal load capacity(Kg) 8
    Rated vertical load capacity(Kg) 4
    Rated thrust force(N) 500
    Screw dynamic load capacity(N) 1800
    Maximum side moment(N.m) MR=12     MP=6     MY=6
    Maximum speed(mm/s) 40
    Operating temperature(℃) minimum -196℃/maximum +200℃(refer to environment ratings table for details)
    Maximum vacuum level(Pa) 10-7(refer to environment ratings table for details)
    Radiation resistance(Gy) 106
    Adapted motor 42mm stepper motor

    Dimension Drawings

    For reference only. Contact us for 2D and 3D drawings.

    kls40

    Specifications

    KLS60
    Width of base construction(mm) 60
    Stroke length(mm), intermediate length available on request 50、100、150、200、250、300、350、400、450、500、550、600
    Screw diameter(mm) 12
    Screw lead(mm) 5/10
    Screw accuracy grade C5
    Motor mounting    in-line (with coupling)/Parallel mounting (with gear)
    Repeatability(mm) ±0.02
    Rated horizonal load capacity(Kg) 40
    Rated vertical load capacity(Kg) 10
    Rated thrust force(N) 1500
    Screw dynamic load capacity(N) 5100
    Maximum side moment(N.m) MR=78     MP=43     MY=43
    Maximum speed(mm/s) 250 (400W servo drive)/500 (400W servo drive)
    Operating temperature(℃) minimum -196℃/maximum +200℃(refer to environment ratings table for details)
    Maximum vacuum level(Pa) 10-7(refer to environment ratings table for details)
    Radiation resistance(Gy) 106
    Adapted motor 57/60mm stepper motor，400W servo motor

    Dimension Drawings

    KLS60-motor in-line mounting

    kls40

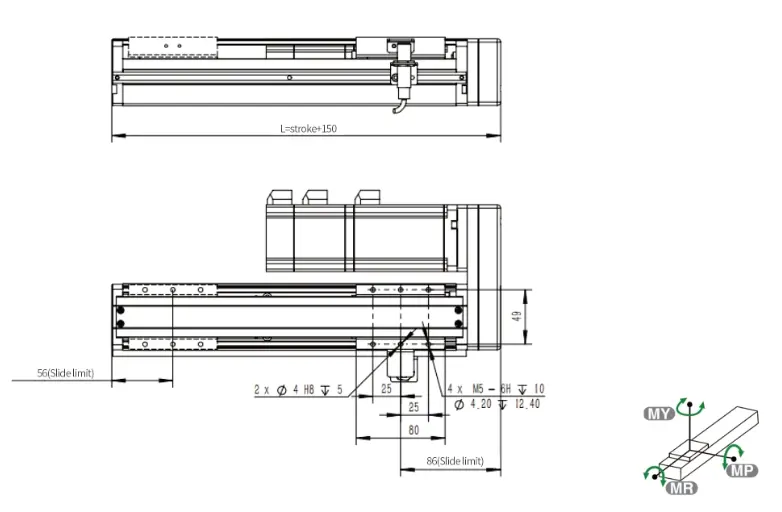

    KLS60-motor parrllel mounting
    kls60-

    Specifications

    KLS80
    Width of base construction(mm) 80
    Stroke length(mm), intermediate length available on request 50mm~1000mm，increament 50mm
    Screw diameter(mm) 16
    Screw lead(mm) 5/10/16
    Screw accuracy grade C7 (C5 optional)
    Motor mounting    in-line (with coupling)/Parallel mounting (with gear)
    Repeatability(mm) ±0.02
    Rated horizonal load capacity(Kg) 60
    Rated vertical load capacity(Kg) 40
    Rated thrust force(N) 2500
    Screw dynamic load capacity(N) 10400
    Maximum side moment(N.m) MR=105     MP=65     MY=65
    Maximum speed(mm/s) 250 (750W servo drive)/500 (750W servo drive)/800 (750W servo drive)
    Operating temperature(℃) minimum -196℃/maximum +200℃(refer to environment ratings table for details)
    Maximum vacuum level(Pa) 10-7(refer to environment ratings table for details)
    Radiation resistance(Gy) 106
    Adapted motor 86mm stepper motor，750W servo motor

    Dimension Drawings

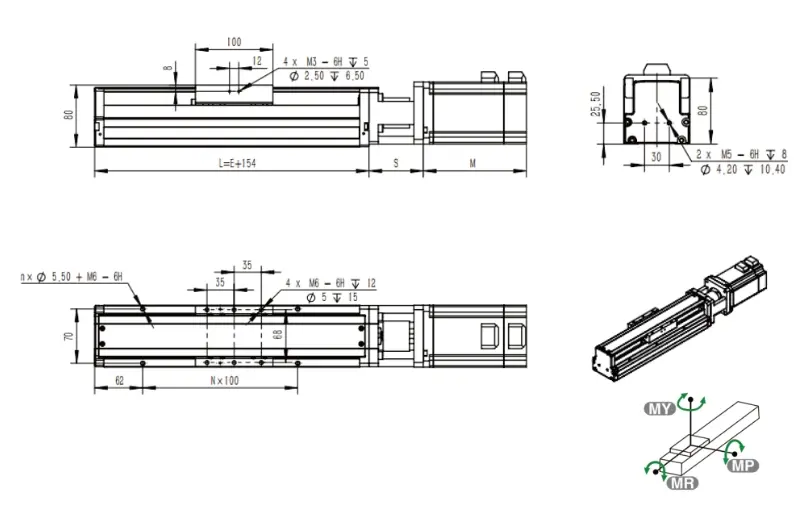

    KLS80-motor in-line mounting

    kls80

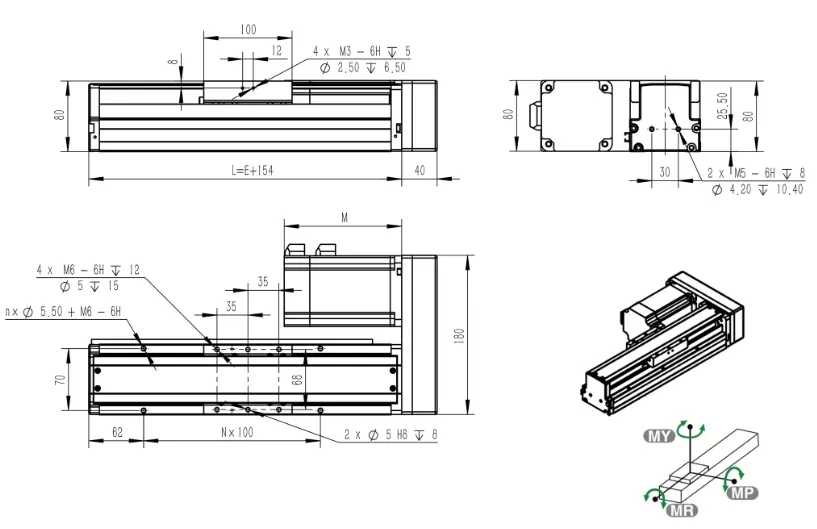

    KLS80-motor parrllel mounting
    kls80-

    Specifications

    KLS140
    Width of base construction(mm) 140
    Stroke length(mm), intermediate length available on request 50mm~1300mm，increament 50mm
    Screw diameter(mm) 20
    Screw lead(mm) 5/10/20(the screw is 10/20mm, and the longest stroke is 500mm)
    Screw accuracy grade C7 (C5 optional)
    Motor mounting    in-line (with coupling)
    Repeatability(mm) ±0.02
    Rated horizonal load capacity(Kg) 120
    Rated vertical load capacity(Kg) 80
    Rated thrust force(N) 4000
    Screw dynamic load capacity(N) 28000
    Maximum side moment(N.m) MR=180     MP=128     MY=128
    Maximum speed(mm/s) 833(1000W servo drive)
    Operating temperature(℃) minimum -196℃/maximum +200℃(refer to environment ratings table for details)
    Maximum vacuum level(Pa) 10-7(refer to environment ratings table for details)
    Radiation resistance(Gy) 106
    Adapted motor 86mm stepper motor，1000W servo motor

    Dimension Drawings

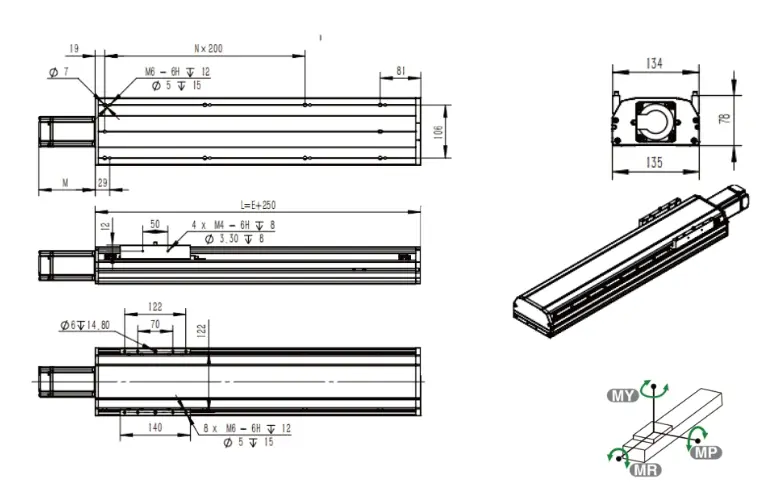

    KLS140-motor in-line mounting

    kls140

    Specifications

    KLS170
    Width of base construction(mm) 170
    Stroke length(mm), intermediate length available on request 50mm~1500mm，increament 50mm
    Screw diameter(mm) 25
    Screw lead(mm) 5
    Screw accuracy grade C7
    Motor mounting    in-line (with coupling)
    Repeatability(mm) ±0.02
    Rated horizonal load capacity(Kg) 150
    Rated vertical load capacity(Kg) 100
    Rated thrust force(N) 3500
    Screw dynamic load capacity(N) 9400
    Maximum side moment(N.m) MR=810     MP=920     MY=920
    Maximum speed(mm/s) 208
    Operating temperature(℃) minimum -196℃/maximum +200℃(refer to environment ratings table for details)
    Maximum vacuum level(Pa) 10-7(refer to environment ratings table for details)
    Radiation resistance(Gy) 106
    Adapted motor 1000W servo motor,with or without gearbox based on actual load

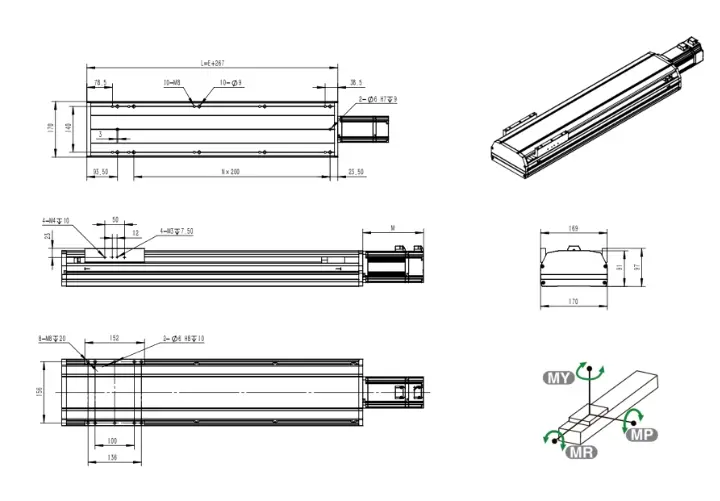

    Dimension Drawings

    KLS170-motor in-line mounting

    kls170

    Leave Your Message
