How to Choose Stepper Gears for Global Sourcing?
Choosing Stepper Gears for global sourcing requires more than comparing prices on supplier websites. These components influence torque transmission, positioning accuracy, noise, and service life in equipment ranging from compact robots to packaging machines. A suitable gear must match the stepper motor’s torque curve, shaft size, reduction ratio, operating speed, and expected load. Small mismatches can create backlash, overheating, or premature tooth wear.
Begin with a clear technical specification. State the gear module or pitch, tooth count, pressure angle, material, bore tolerance, surface treatment, and required operating temperature. Metal gears may suit high loads, while engineered polymers can reduce noise and weight. However, material selection depends on lubrication, duty cycle, and environmental exposure. Ask suppliers for drawings, inspection records, material certificates, and sample measurements. Practical testing matters more than attractive catalog images. Measure backlash and runout with suitable gauges, then test the assembly under realistic load cycles.
Global sourcing also demands careful supplier evaluation. Review manufacturing experience, quality controls, production capacity, packaging methods, and communication practices. Confirm whether the supplier can maintain tolerances across repeated batches. Request a pre-production sample before approving larger orders. Check shipping terms, import documentation, and applicable product standards with qualified professionals. Requirements vary by destination and industry. No sourcing plan is flawless. I have seen low-cost gears fail because packaging allowed moisture and impacts during transit. That detail is easy to miss. A reliable decision balances performance, traceability, total cost, and long-term supplier support.
Define Stepper Gears and Their Role in Motion Systems
Stepper gears
are toothed transmission components used with stepper motors. They transfer motor rotation to a driven shaft. They are not the motor itself.
A gear pair can reduce speed and increase output torque. It can also improve positioning control under heavier loads.
In motion systems, stepper gears often drive conveyor rollers, camera stages, valves, feeders, and compact robotic joints.
The gear ratio changes system behavior.
A 5:1 reduction gives the output shaft lower speed and higher torque.
However, it may reduce movement speed and introduce backlash.
Backlash
is unwanted clearance between mating teeth. Even a small gap can affect repeatability during direction changes.
Engineers should check
tooth profile, module, shaft size, rated torque, noise, lubrication, and operating temperature.
Global sourcing requires more than comparing prices.
Ask suppliers for dimensional drawings, material details, tolerance data, and inspection records.
Confirm whether torque ratings reflect continuous or short-term operation. Request samples before approving a production order. Test them with the actual motor, load, acceleration, and duty cycle.
Real results may differ from catalog values. This is where careful measurement matters. I would also verify packaging quality and corrosion protection for long-distance shipment.
A low-cost gear is not a saving if misalignment causes early wear.
One detail is easy to miss: the gear, motor, and controller must work as one matched system.
Identify Key Gear Specifications for Your Application

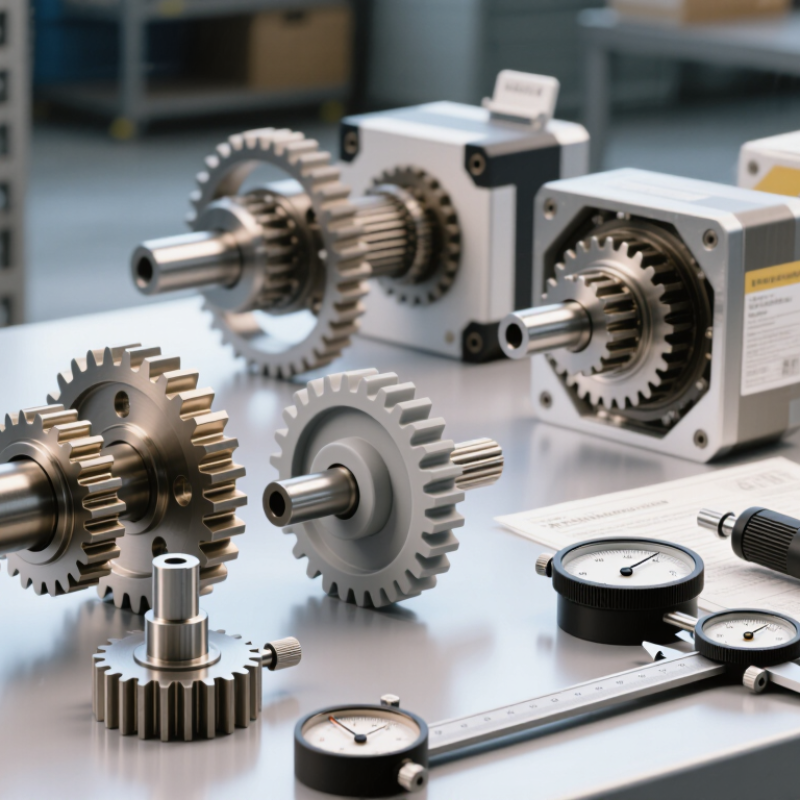

Choosing Stepper Gears for Global Sourcing
Selecting a stepper gear begins with the application, not the supplier catalog. Define the required output torque, speed, duty cycle, and positioning accuracy. A high reduction ratio can increase torque, but it may also reduce speed and efficiency. Check the motor shaft diameter, mounting pattern, and available installation space before requesting quotations. Small mismatches can delay an otherwise suitable project.
Gear specifications must be written precisely. Include the gear ratio, module or diametral pitch, pressure angle, tooth count, backlash, bore size, and shaft tolerances. State the material and heat-treatment requirements when wear resistance matters. For quiet equipment, ask for measured noise levels and transmission smoothness. The operating temperature range is important too. Grease performance can change sharply in cold or hot environments.
During global sourcing, request dimensional drawings, inspection records, and sample units. Confirm whether torque ratings represent continuous or short-term operation. This detail is often overlooked. I have seen projects compare attractive prices before checking backlash and service life. That approach usually creates expensive revisions. A supplier should explain its testing method, tolerance control, and packaging protection. Still, published data may not match real assembly conditions. Test the gear with your actual motor, load, and mounting structure before approving mass production. Perfect specifications on paper can still fail in practice.
How to Choose Stepper Gears for Global Sourcing? - Identify Key Gear Specifications for Your Application
| Application Profile |
Typical Output Torque |
Recommended Gear Type |
Nominal Ratio |
Module |
Tooth Count
Pinion / Gear |
Pressure Angle |
Face Width |
Output Bore |
Backlash Target |
Typical Material |
Key Sourcing Checks |
| Compact Positioning Stage |
0.8–2.0 N·m |
Spur gear pair |
3:1 |
0.8 mm |
20 / 60 |
20° |
8–10 mm |
8 mm |
≤0.20° |
Case-hardened steel |
Verify low runout, concentricity, tooth profile, and quiet operation at the required step rate. |
| Conveyor Indexing Unit |
3–8 N·m |
Helical gear pair |
5:1 |
1.0 mm |
18 / 90 |
20° |
12–16 mm |
12 mm |
≤0.30° |
Alloy steel |
Check helix direction, axial thrust capacity, lubrication method, and continuous-duty temperature rise. |
| Robotic Joint or Pan-Tilt Axis |
8–20 N·m |
Planetary gearhead |
10:1 |
1.0–1.25 mm |
18 / 60 equivalent |
20° |
15–20 mm |
14 mm |
≤0.50° |
Hardened alloy steel |
Confirm rated torque, peak torque, torsional stiffness, reduction-stage efficiency, and allowable radial load. |
| Valve or Damper Actuator |
15–35 N·m |
Worm gear set |
20:1 |
1.5 mm |
1-start / 20 teeth |
20° normal |
20–25 mm |
16 mm |
≤1.00° |
Hardened steel worm / bronze wheel |
Evaluate self-locking requirements carefully; confirm efficiency, heat dissipation, duty cycle, and lubricant compatibility. |
| Compact Medical or Laboratory Mechanism |
0.3–1.2 N·m |
Precision spur gear pair |
4:1 |
0.5–0.8 mm |
20 / 80 |
20° |
5–8 mm |
6 mm |
≤0.15° |
Stainless steel or engineering polymer |
Request cleanability details, material traceability, low-particle performance, dimensional inspection, and approved lubricant data. |
| High-Load Linear Positioning Axis |
20–60 N·m |
Planetary or helical gearhead |
7:1 |
1.5–2.0 mm |
18 / 126 equivalent |
20° |
25–35 mm |
20 mm |
≤0.40° |
Carburized alloy steel |
Verify shock-load capacity, service factor, bearing life, thermal rating, mounting accuracy, and life-test methodology. |
Specification note:
The values shown are practical preliminary targets for application comparison. Final gear selection should be verified against motor torque-speed curves, acceleration torque, duty cycle, shock loading, thermal limits, allowable backlash, mounting constraints, and the applicable dimensional and quality standards.
Match Gear Types with Torque, Speed, and Accuracy Needs
How to Choose Stepper Gears for Global Sourcing?
Stepper gear selection starts with the load, not the catalog photo. A planetary gearbox suits high torque and compact machines. A worm gearbox offers strong reduction and holding force. However, its sliding contact can reduce efficiency and create heat. For fast indexing, helical or planetary designs usually perform better. Ask for rated torque, peak torque, backlash, and thermal limits. Do not rely on reduction ratio alone.
The 2024 World Robotics report recorded 541,302 industrial robot installations in 2023. That growth increases demand for repeatable motion and dependable sourcing. High-ratio gears improve torque, but they also reduce output speed. A 10:1 gearbox turns a 1,200-rpm motor into roughly 120 rpm, before losses. For positioning, specify backlash in arcminutes and verify it under working load. Accuracy claims can look impressive. The test method may be less impressive.
I have seen buyers choose low-cost worm gears for rapid pick-and-place systems. The units worked briefly, then overheated near the duty-cycle limit. That mistake was avoidable. The U.S. Department of Energy identifies motor-driven systems as major industrial electricity users, so efficiency deserves attention during supplier comparison. Request sample testing, noise measurements, lubrication details, and lifetime data. Check whether the supplier reports continuous torque or only short-term peak torque. Global sourcing adds another risk: inconsistent inspection between factories. A third-party test can expose it. Maybe not every application needs premium precision, but guessing rarely saves money.
Evaluate Suppliers, Materials, and Manufacturing Quality
Choosing stepper gears for global sourcing starts with evaluating the supplier behind the drawing. A low price means little if tolerances change between batches. Ask for process maps, inspection plans, and recent corrective-action records. A factory visit, physical or remote, should reveal clean work areas and organized storage. Look for measurement records, calibration dates, and trained inspectors. Do not trust perfect samples alone. I have seen excellent prototypes followed by inconsistent production. This matters when gear backlash affects positioning accuracy.
Material selection depends on load, speed, noise, and operating temperature. Hardened alloy steel suits demanding applications and repeated motion. Brass may offer easier machining and lower noise. Engineering plastics can reduce weight, but heat and wear require careful testing. Request material certificates and confirm the actual grade during incoming inspection. Check hardness after heat treatment, not only before it. A reliable supplier should explain these choices clearly. If the answer changes between meetings, treat that as a warning.
Manufacturing quality appears in details that photographs cannot show. Measure tooth thickness, pitch accuracy, bore size, and surface finish. Check runout and center distance with calibrated equipment. Ask for dimensional reports from multiple production lots. Small errors can create vibration, missed steps, or uneven movement. During pilot runs, listen for clicking at low speed and inspect teeth after extended cycling. Keep approved samples and signed drawings under document control. Yet, my own inspection plans have sometimes missed packaging damage. Leave room for transport testing and supplier feedback.
Compare Costs, Compliance, and Global Sourcing Risks
How to Choose Stepper Gears for Global Sourcing?
Price is only the visible part of a stepper gear purchase. Compare material, machining, coating, packaging, freight, duties, and inspection costs. UNCTAD’s Review of Maritime Transport reports that over 80% of global merchandise trade moves by sea. A delayed container can therefore damage production schedules more than a small unit-price saving. I recommend calculating landed cost by shipment, not by quotation. Keep currency changes visible. A spreadsheet can still lie.
Compliance needs equal attention. Confirm material certificates, dimensional reports, traceability records, and restricted-substance declarations before approving samples. For European sales, check requirements connected with RoHS and REACH. Other markets may demand different documentation or testing. The International Trade Centre reports that non-tariff measures affect roughly two-thirds of global trade. That figure makes paperwork a sourcing issue, not an administrative detail. Ask who owns corrective action when a report fails.
Global risk is less obvious. The World Bank’s 2023 Logistics Performance Index highlights major differences in customs, infrastructure, shipment tracking, and delivery timeliness across economies. Build a second-source plan for critical gears, but avoid duplicating suppliers without qualification. I have seen buyers compare two factories while relying on the same raw-material region. That is not real diversification. Visit production lines when possible, review process-control records, and test pilot batches under actual load. Some assumptions will be wrong. Leave room to revise them.
