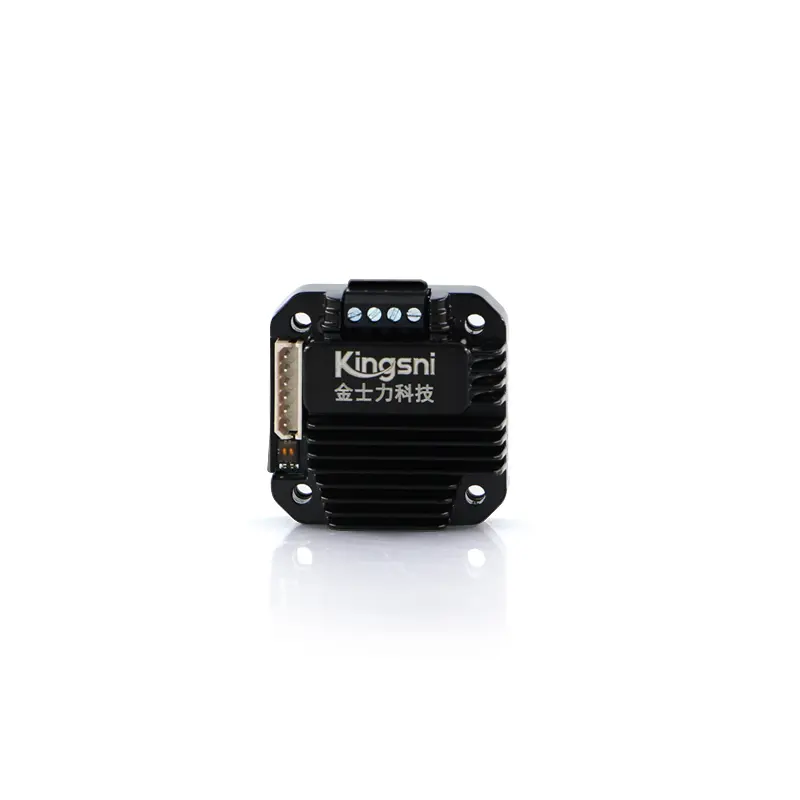

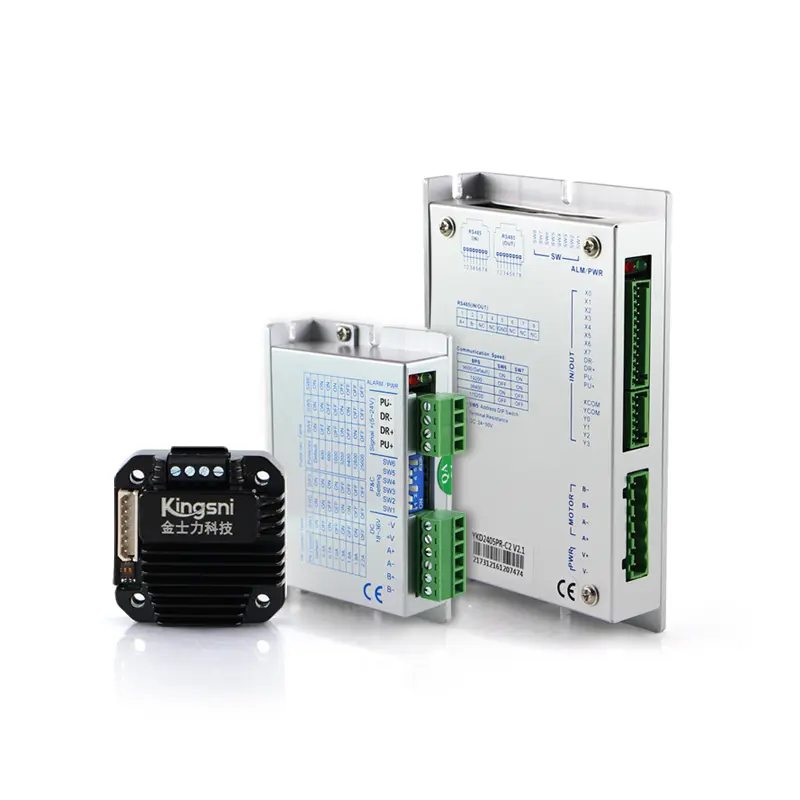

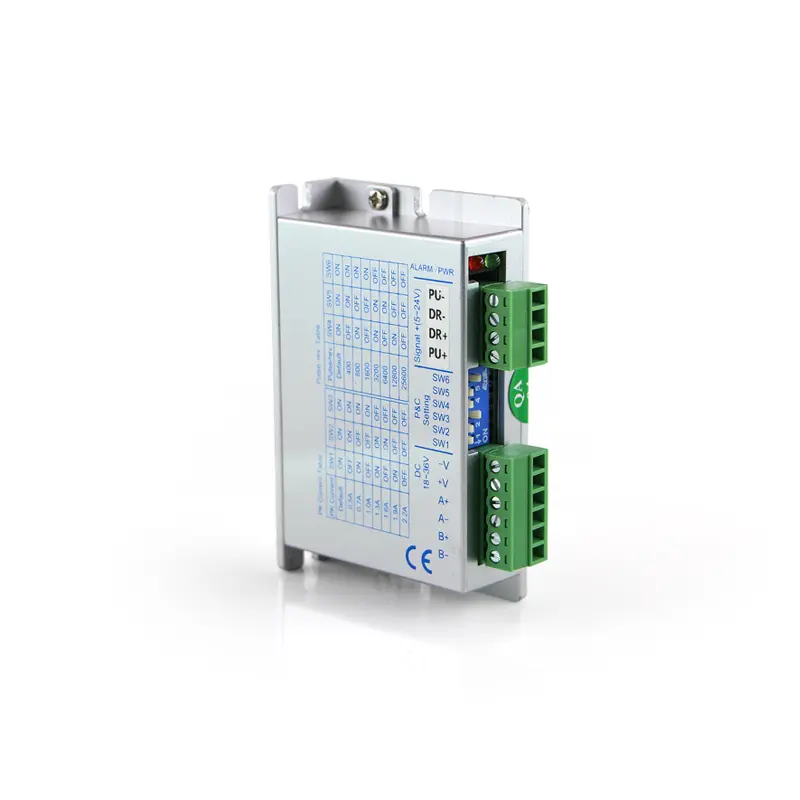

Stepper drives pulse/direction RS485（Modbus RTU）EtherCAT CANopen, division resolution up to 256

**High-Performance Stepper Drives: Precision Control and Versatile Connectivity**, Experience unparalleled performance with our advanced stepper drives, featuring pulse/direction RS485 (Modbus RTU), EtherCAT, and CANopen interfaces. With a division resolution of up to 256 and an operating temperature range of -40 to +70 degrees Celsius, our stepper drives are designed to excel in demanding environments, Engineered with best-in-class current control technology, our robust and flexible onboard control options ensure optimal smoothness and exceptional torque capacity for your applications. The integrated series of stepper drives, coupled with multiple industry-standard fieldbus control options, provides extensive versatility for system design optimization, Choose Kingsni stepper drives for reliable performance, enhanced efficiency, and seamless integration into your industrial automation solutions. Unlock the full potential of your systems with our innovative drive technology today!
    Contact us
    Overview
    Specifications

    Key Features

    ● Micro-step control, smooth running, low noise and high torque capacity

    ● Protections: over-voltage, under-voltage, over-current
    ● Operating temperature: 0 to +50°C or -40 to +85C
    ● Control loop: open-loop or closed-loop
    ● Power supply: DC 12~110VDC or AC 18~80VAC

    Command source

    ● Pulse and direction
    ● Communication: RS485(Modbus RTU), EtherCAT, CANopen
    ● I/O triggered multi-position or multi-speed control
    ● Speed control via analog voltage or potentiometer

    Applications

    ● Biomedical
    ● Semiconductor manufacturing
    ● 3C manufacturing
    ● Scientific Instruments
    ● in-vacuum equipment
    ● Nuclear energy
    ● Military and Aerospace
    ● automative parts testing
    ● General Automation

    kh

    ① Product series

    KH series stepper motors


    ② Flange size

    28/42/57/86mm


    ③ Motor length

    48/51/56/58/60/65/76/80/84/118/156/165/201mm


    ④ Output shaft

    D = single shaft

    SZ = double shaft


    ⑤ *Brake

    Blank = without brake
    B = with brake


    ⑥ *Feedback devices

    Blank = without feedback

    **IE = Incremental encoder

    *** AE = Absolute encoder(RS485, Modbus RTU)

    ⑦ Integrated drives mounting

    Blank = Without integrated mounted stepper drive

    DRC = stepper driver mounted on the side of the motor

    DRH = stepper driver mounted at the rear end of the motor



    *It is not possible to install both brake and position feedback devices on one single motor.

    **In order for the incremental encoder signal to be received and processed by the closed-loop stepper drive, the encoder output signals must be 5V differential signals with a maximum resolution of 2500PPR.

    ***  The absolute encoder feedback signals need to be received and processed by the user′s controller.

    Stepper drives selection guide

    Stepper drives selection guide

    Operating temperature Command source KH2851、KH42XX KH57XX、KH60XX KH8680、KH86XX、KH110XX
    0-50℃(open-loop) pulse and direction KMD3616-DP KMD5040-DP KMD8060-DP
    pulse and direction with alarm output YKD2204M-PLUS YKD2405M-PLUS YKD2608M-PLUS
    RS485(Modbus RTU) YKD2204PR YKE2405PR YKE2608PR
    CANopen YKE2405PC YKE2405PC YKE2608PC
    EtherCAT YKD2205PE YKD2405PE YKD2608PE
    I/O control YKE2204M-IO YKE2405M-IO YKE2608MH-IO

    0-50℃(closed-loop)

    With 5V differential A/B incremental feedback interface

    		 pulse and direction SSD2205M ESD2505M ESD2608H
    RS485(Modbus RTU) SSD2505PR-A1 SSD2505PR-A1 SSD2608PR-A1
    CANopen SSD2505PC SSD2505PC SSD2608PC
    EtherCAT MS-Mini2E MS-Mini3E MS-S3E
    Operating temperature Command source KH2851、KH42XX KH57XX、KH6058、KH6065 KH6084、KH86XX、KH 110XX
    -40 to +85℃(open-loop) pulse and direction KMD4015-DP-OL-NTL1 KMD5031-DP-OL-NTL1 KMD3880-DP-NTL1
    RS485(Modbus RTU) KMD4020-485-OL-NTL1 KMD5060-485-OL-NTL1
    Operating temperature Command source KVM2851、KVM4248 KVM5770、KVM5786 KVM86128
    0-50℃(open-loop) pulse and direction KMD3616-DP KMD5040-DP KMD8060-DP
    pulse and direction with alarm output YKD2204M-PLUS YKD2405M-PLUS YKD2608M-PLUS
    RS485(Modbus RTU) YKD2204PR YKE2405PR YKE2608PR
    CANopen YKE2405PC YKE2405PC YKE2608PC
    EtherCAT YKD2205PE YKD2405PE YKD2608PE
    I/O control YKE2204M-IO YKE2405M-IO YKE2608MH-IO
